In 1752, Benjamin Franklin performed one of the most famous experiments in the history of electricity. He used a kite during a thunderstorm to show that lightning carried the same kind of electrical charge that scientists were already producing in laboratories with friction machines.
The experiment did not involve Franklin being struck directly by lightning. That is one of the biggest misconceptions about the story. If the kite had taken a full lightning strike, he probably would have died instantly.
Franklin and Electricity, a vignette engraved by the Bureau of Engraving and Printing, c. 1860
What Franklin actually detected was electrical charge from the storm cloud itself. Tiny sparks jumped from a metal key attached to the kite string. That small observation helped connect atmospheric lightning with electricity on Earth and pushed science toward a much deeper understanding of electrical phenomena.
It also led directly to the invention of the lightning rod, one of the earliest practical electrical safety devices ever created.
The story sits right at the intersection of physics, weather science, engineering, and scientific curiosity.
What Scientists Knew About Electricity Before Franklin
By the early 1700s, scientists already knew that certain materials could produce static electricity.
People had experimented with:
- rubbing glass rods with cloth
- generating sparks using rotating electrostatic machines
- storing electrical charge in Leyden jars, which were early capacitors
Researchers noticed strange similarities between sparks from laboratory devices and natural lightning:
- both produced bright flashes
- both created crackling sounds
- both could ignite materials
- both seemed to jump through air
But nobody had clearly demonstrated that lightning itself was electrical.
Franklin became interested in this question while studying reports from European scientists working on electrostatics.
At the time, electricity was still poorly understood. Electrons had not been discovered yet. Scientists did not know about electric fields, charge carriers, or electromagnetic theory. Even the words “positive” and “negative” charge were still relatively new.
Franklin helped standardize some of that terminology himself.
Franklin’s Original Idea
Franklin initially proposed using a tall metal rod placed on a church steeple or tower to draw electrical charge from storm clouds.
The basic idea was surprisingly modern.
Thunderclouds develop large charge separations because collisions between ice particles and water droplets transfer electric charge inside the cloud. The lower part of many storm clouds becomes strongly negatively charged relative to the ground below.
That creates an enormous electric field between cloud and Earth.
Franklin suspected that if a pointed metal object extended upward into this electric field, charge could move onto the conductor and be collected.
Before his tower experiment could be built, news arrived that French scientist Thomas-François Dalibard had successfully demonstrated Franklin’s idea in France using a tall iron rod in May 1752.
Franklin then carried out the famous kite experiment shortly afterward in Philadelphia.

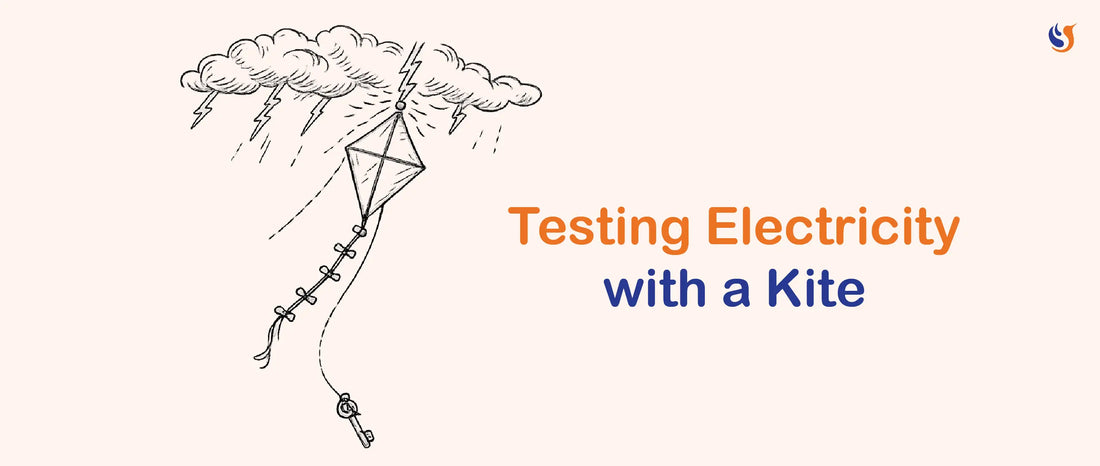

How The Kite Experiment Actually Worked
The setup was simple but carefully designed.
Franklin used:
- a silk kite
- a metal wire attached to the top of the kite
- a hemp string
- a metal key tied near the lower end
- a silk ribbon held by hand for insulation
The materials mattered a lot.
Why The Wet String Was Important
Dry hemp string is not a great electrical conductor.
But during a thunderstorm, rainwater soaked the string and dramatically lowered its electrical resistance. Water containing dissolved minerals and impurities conducts electricity reasonably well compared to dry fibers.
That wet string effectively became a conductive path connecting the electrically charged atmosphere to the key.
The silk ribbon near Franklin’s hand served the opposite purpose. Silk stays relatively insulating when dry, helping reduce the chance of electrical charge flowing through his body.
This detail often gets oversimplified in retellings. The ribbon did not make the experiment completely safe. It only reduced risk somewhat.
Why The Key Produced Sparks
As the storm cloud passed overhead, electrical charge accumulated along the wet string and metal key.
When Franklin moved his knuckle close to the key, a spark jumped across the air gap.
That spark happened because the electric field became strong enough to ionize the surrounding air. Electrons rapidly moved through the gap, producing a visible discharge.
This was essentially a miniature version of lightning itself.
Franklin also reportedly charged a Leyden jar from the kite setup, which strongly supported the idea that atmospheric electricity behaved like laboratory electricity.
Franklin Probably Never Flew The Kite Into Active Lightning
This part is important.
Many modern illustrations show Franklin standing directly under a giant lightning strike hitting the kite.
That almost certainly did not happen.
A direct lightning strike carries enormous current, often tens of thousands of amperes. Modern measurements show typical lightning currents around 10,000 to 30,000 amperes, though some strikes are much larger.
Human survival under direct strike conditions is rare and often causes severe injuries including:
- cardiac arrest
- neurological damage
- burns
- hearing loss
If Franklin’s kite had received a full strike while he was attached to the conductive string, the current would likely have traveled through him.
Several later experimenters died attempting similar demonstrations.
The best historical interpretation is that Franklin collected ambient electrical charge from the storm’s electric field rather than intercepting a main lightning channel.
That distinction matters scientifically.
He demonstrated that storm clouds were electrically charged without needing a full lightning bolt.
The Physics Behind Lightning
Benjamin Franklin Drawing Electricity from the Sky, an artistic rendition of Franklin's kite experiment painted by Benjamin West, c. 1816
Modern atmospheric physics explains lightning far better than scientists could in Franklin’s time.
Inside thunderclouds, turbulent motion causes collisions between:
- ice crystals
- graupel particles
- supercooled water droplets
These collisions separate electrical charges.
Typically:
- the upper cloud becomes positively charged
- the lower cloud becomes negatively charged
The electric field between cloud and ground can become extremely strong, sometimes exceeding millions of volts.
Air normally acts as an insulator. But when the electric field becomes intense enough, air molecules ionize and form conductive plasma channels.
Lightning develops through several stages:
- A stepped leader forms downward from the cloud.
- Streamers rise upward from objects on the ground.
- When the channels connect, massive current flows.
- The air heats to temperatures hotter than the Sun’s surface for a brief moment.
- Rapid air expansion creates thunder.
Franklin did not know these microscopic mechanisms, but his experiment correctly linked lightning to electricity.
That was a huge conceptual leap.
Why Franklin’s Experiment Was So Important
The experiment changed science in several ways at once.
It Connected Atmospheric Physics With Laboratory Physics
Before Franklin, lightning seemed mysterious and separate from ordinary experiments.
Afterward, scientists increasingly understood that nature followed the same physical rules everywhere.
That idea became foundational to modern physics.
It Helped Launch Electrical Science
Franklin’s work influenced later researchers including:
- Michael Faraday
- Alessandro Volta
- James Clerk Maxwell
Electricity gradually transformed from a curiosity into a measurable scientific field.
It Led To The Lightning Rod
Franklin soon invented the lightning rod, which remains one of the most important electrical protection systems ever created.
A lightning rod works by:
- providing a conductive path
- safely directing current into the ground
- reducing damage to buildings
Modern lightning protection systems still follow the same basic principle.
Large structures today use networks of:
- air terminals
- grounding conductors
- bonding systems
- surge protection devices
The engineering became more advanced, but the core idea traces directly back to Franklin’s work.
There Is Still Debate About Some Historical Details
Historians agree the experiment probably happened, but some details remain uncertain.
Franklin did not provide a full detailed laboratory-style report immediately after the event. Much of the story comes from later descriptions.
Some researchers have debated:
- the exact weather conditions
- whether Franklin personally performed every part
- whether some details became exaggerated over time
But the scientific principle itself is well supported.
There is also occasional confusion between Franklin’s kite experiment and the earlier French rod experiment by Dalibard. The rod experiment actually produced clearer evidence first, though Franklin’s version became much more famous historically.
Why Repeating The Experiment Today Is Extremely Dangerous
Modern scientists strongly warn against recreating Franklin’s experiment.
Thunderstorms are unpredictable electrical systems capable of generating deadly currents.
Even nearby lightning strikes can induce dangerous voltages in conductive objects.
Professional lightning researchers use:
- grounded measurement systems
- insulated instrumentation
- remote sensors
- rocket-triggered lightning systems
- high-speed imaging equipment
Some laboratories intentionally trigger lightning using rockets trailing grounded wires, but these are heavily controlled scientific operations with extensive safety systems.
Franklin’s experiment belongs to the history of science, not a modern DIY activity.
A Small Spark That Changed Physics
What makes Franklin’s kite experiment fascinating is not just the drama of flying a kite in a storm.
It is the moment of recognition.
A tiny spark jumping from a key showed that the violent flashes inside storm clouds followed the same electrical principles seen in tabletop experiments.
That connection helped turn electricity from a mysterious curiosity into a serious scientific field.
And oddly enough, the experiment also reflects something very human about science. Franklin saw similarities between two seemingly unrelated things and decided to test the idea directly.
The equipment was simple.
The question was enormous.
