In 1798, a scientist named Henry Cavendish managed to measure the mass of Earth without leaving the ground, digging deep underground, or seeing the planet from space. He did it by measuring one of the weakest forces humans had ever detected at the time: the tiny gravitational pull between lead balls inside a room.
Picture and signature of Henry Cavendish
The experiment is now called the Cavendish experiment. It became one of the most important physics experiments ever performed because it allowed scientists to calculate Earth’s density and eventually its mass. More importantly, it showed that gravity between ordinary objects could actually be measured directly.
Today, the same physics sits underneath satellite orbits, planetary science, spacecraft navigation, and modern gravitational research.
The Problem Scientists Could Not Solve
By the late 1600s, Isaac Newton had already described gravity mathematically. His law of universal gravitation explained that every mass pulls on every other mass.
The equation looked simple:
F = G × (m₁m₂ / r²)
But there was a problem.
Nobody knew the value of G, the gravitational constant.
Without G, scientists could compare gravitational effects, but they could not calculate the actual mass of Earth. They knew objects fell downward. They knew the Moon orbited Earth. They even knew roughly how strong gravity felt at Earth’s surface.
But they did not know how much matter Earth actually contained.
That missing number blocked much of planetary physics.
Why Measuring Earth’s Mass Was So Difficult
Gravity is surprisingly weak.
A refrigerator magnet can easily overcome the gravitational pull of the entire Earth on a paperclip. That sounds absurd at first, but it is true because electromagnetic forces are vastly stronger than gravity at small scales.
The challenge was not measuring Earth’s gravity. Humans experience that constantly.
The challenge was measuring gravity between small laboratory objects.
Two metal spheres sitting near each other exert a gravitational force so tiny that:
- air movement can disturb it
- temperature changes can affect it
- vibrations from footsteps matter
- static electricity can interfere
- nearby masses can influence readings
In the 1700s, this sounded almost impossible.
The Torsion Balance That Changed Physics
The key instrument came from another scientist first.
John Michell designed an instrument called a torsion balance before his death. Cavendish later inherited the apparatus and refined it extensively.

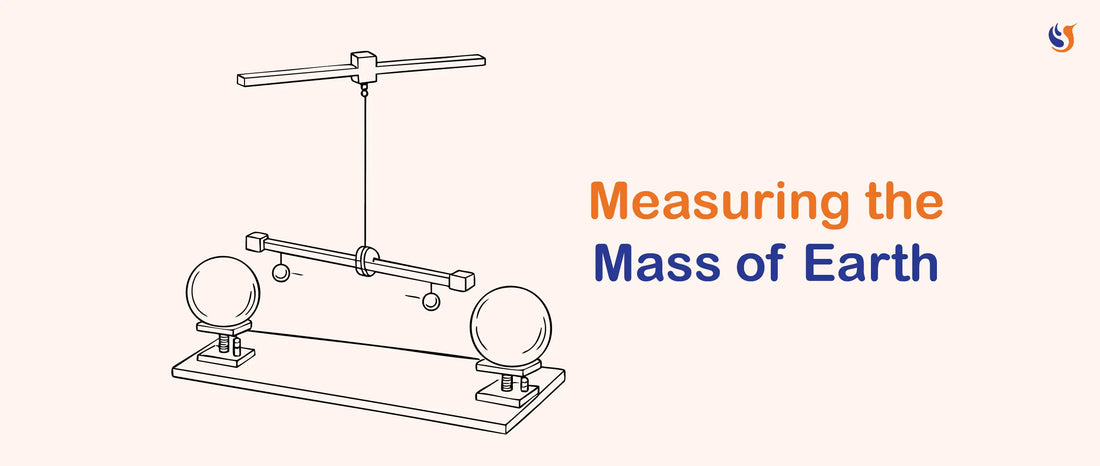

Drawing of torsion balance apparatus used by Henry Cavendish in the 'Cavendish Experiment' to measure the gravitational constant in 1798.
The setup looked deceptively simple:
- a wooden rod suspended horizontally by a thin wire
- a small lead sphere attached to each end
- two much larger lead spheres positioned nearby
The large spheres attracted the smaller ones gravitationally.
That attraction twisted the wire slightly.
The twist angle was tiny. Only a fraction of a degree.
But the wire resisted twisting, and that resistance could be measured very precisely.
Detail showing torsion balance arm (m), large ball (W), small ball (x), and isolating box (ABCDE).
Once Cavendish knew:
- how much the wire twisted
- how stiff the wire was
- the masses involved
- the distances between them
he could calculate the gravitational force between the objects.
That was the breakthrough.
For the first time in history, humans directly measured gravity between ordinary objects in a laboratory.
How The Experiment Actually Worked
The torsion balance depended on rotational equilibrium.
When the large lead spheres were moved near the smaller ones, gravitational attraction pulled the rod sideways. The suspended wire twisted until:
- gravitational torque, and
- restoring torque from the wire
became equal.
Cavendish measured the oscillation period of the system to determine the wire’s torsional stiffness. Then he measured the equilibrium twist angle caused by the gravitational attraction.
This allowed him to calculate the force.
The forces involved were incredibly small. Modern estimates place them around 10⁻⁷ newtons. Roughly comparable to the weight of a tiny grain of sand.
To reduce interference:
- the apparatus was enclosed
- measurements were taken remotely
- Cavendish observed using telescopes through windows
- the room was kept isolated from disturbances
Even nearby people could affect readings slightly through their own mass.
That sounds exaggerated, but with sensitive gravitational measurements, it becomes real surprisingly fast.
Cavendish Was Not Actually Trying To Measure Earth’s Mass
Interestingly, Cavendish described the experiment differently.
His stated goal was to determine Earth’s density.
At the time, scientists often discussed “specific gravity” or average density relative to water.
Once the average density of Earth was known, calculating the total mass became possible because Earth’s size was already reasonably well known from geodesy and astronomy.
Cavendish found Earth’s average density to be about:
5.48 times the density of water
The modern accepted value is approximately:
5.51 grams per cubic centimeter
That is remarkably accurate for an experiment done in the 18th century.
Using Earth’s radius and volume, scientists could then calculate Earth’s mass:
-
modern value: about 5.97 × 10²⁴ kilograms
Cavendish himself never wrote that number explicitly because kilograms and modern SI conventions did not yet exist in their current form.
Did Cavendish Measure The Gravitational Constant G?
This part is historically messy.
Many modern explanations say Cavendish “measured G.” Technically, that is not how he framed the experiment.
The gravitational constant G was not commonly used in the modern form during Cavendish’s time. The constant became standardized much later in 19th-century physics.
What Cavendish directly measured was Earth’s density through gravitational attraction measurements.
But mathematically, once later physicists rewrote Newton’s equation using the modern constant G, Cavendish’s data effectively provided a value for it.
So modern textbooks often describe the experiment as the first measurement of G, even though Cavendish himself never described it that way.
Both interpretations are partly correct depending on historical context.
Why Lead Was Used
Lead spheres were chosen for practical reasons.
Lead is:
- very dense
- relatively easy to shape
- stable
- inexpensive for large masses
Denser objects produce stronger gravitational attraction at the same size. That made the tiny forces slightly easier to measure.
The larger spheres used by Cavendish weighed around 158 kilograms each. The smaller spheres were much lighter.
Even with those heavy masses, the gravitational pull remained extremely tiny.
The Experiment Had Serious Limitations
The Cavendish experiment was brilliant, but it was not perfect.
Several problems affected accuracy:
- uncertainty in wire properties
- thermal expansion
- vibration
- air currents
- imperfect sphere alignment
- local geological mass variations
The torsion fiber itself was especially tricky. Small material imperfections could change measurements subtly.
Modern measurements of G are still difficult today.
That surprises many people because modern physics is extremely precise in other areas. Constants related to electromagnetism can be measured far more accurately than G.
The gravitational constant remains one of the least precisely known fundamental constants in physics.
Even modern laboratories sometimes get slightly conflicting values.
Gravity is just extraordinarily weak.
How Scientists Measure Earth’s Mass Today
Today, Earth’s mass is determined using much more advanced methods:
- satellite tracking
- orbital mechanics
- laser ranging
- gravitational field mapping
- space probe trajectories
Space missions measure Earth’s gravitational field with astonishing precision.
For example:
- tiny orbital changes in satellites reveal variations in Earth’s mass distribution
- mountain ranges slightly alter local gravity
- underground water movement changes measurable gravitational signals
- melting ice sheets affect Earth’s gravitational field
Modern missions like GRACE have mapped gravitational variations across Earth in extraordinary detail.
But underneath all of that is still the same Newtonian gravitational framework Cavendish helped make measurable.
Why This Experiment Still Matters
The Cavendish experiment was not just about “weighing Earth.”
It proved something deeper.
It showed that gravity between everyday objects could be measured experimentally.
That transformed gravity from a large-scale astronomical idea into a laboratory science.
The experiment also helped connect:
- astronomy
- geophysics
- mechanics
- precision measurement
- planetary science
Without measurements like these, modern orbital mechanics would have developed much more slowly.
The same principles are now used in:
- spacecraft navigation
- satellite deployment
- asteroid tracking
- planetary mass calculations
- gravitational research
- precision physics experiments
Even modern searches for dark matter and gravitational waves rely on descendants of ultra-sensitive measurement techniques pioneered by experiments like Cavendish’s.
A Small Twist That Measured A Planet
One of the strangest parts of this story is the scale mismatch.
Earth weighs roughly:
5,970,000,000,000,000,000,000,000 kilograms. (22 zeroes, in case you were counting!)
Cavendish measured that using a slowly twisting wire inside a room.
No rockets.
No satellites.
No space travel.
Just geometry, careful measurement, Newton’s equations, and extraordinary patience.
That is part of why the experiment still feels magical even to physicists today. It turned an invisible force into something measurable by human hands.
