In 1909, a tiny sheet of gold changed physics.
Before the famous gold foil experiment, most scientists believed atoms were soft, spread-out structures with positive charge filling the whole atom. Electrons were thought to sit inside that positive material like raisins in pudding. It sounded reasonable because atoms were known to be electrically neutral overall.
Then Ernest Rutherford and his team fired alpha particles at an ultra-thin sheet of gold.
Photograph of Ernest Rutherford in 1892
Most particles passed straight through.
A few bent sharply.
And a very small number bounced almost directly backward.
That result made almost no sense under the old atomic model. Rutherford realized the atom could not be a diffuse blob. Nearly all of an atom’s mass and positive charge had to be packed into an extremely tiny central region. That region became known as the nucleus.
The experiment revealed something shocking for its time:
Atoms are mostly empty space.
That idea became the foundation of modern atomic physics.
What Scientists Thought Atoms Looked Like Before Rutherford
By the early 1900s, scientists already knew atoms contained negatively charged electrons. J. J. Thomson had discovered the electron in 1897 through cathode ray experiments.
The big question was this:
Where was the positive charge?
Thomson proposed what became known as the “plum pudding” model. In this picture:
- Positive charge was spread throughout the atom
- Electrons were embedded inside it
- The atom was roughly uniform internally
An atom with seven electrons arranged in a pentagonal dipyramid, as imagined by Thomson in 1905
It was not a foolish idea. In fact, it explained several observations available at the time. Since atoms were neutral overall, a spread-out positive charge seemed plausible.
But nobody had directly probed the inside of an atom yet.
That is what Rutherford’s team attempted.

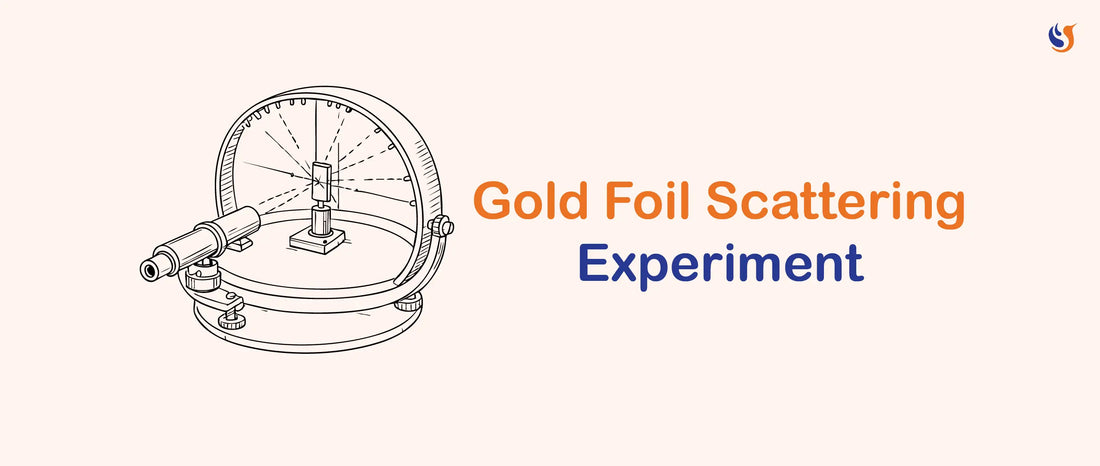

The Setup Of The Gold Foil Experiment
The experiment is often simplified in textbooks, but the actual setup was very clever and technically demanding for its time.
Rutherford supervised the work at the University of Manchester, while Hans Geiger and Ernest Marsden carried out much of the experimental work.
They used:
- A radioactive source producing alpha particles
- A lead block with a narrow slit to create a beam
- Extremely thin gold foil
- A zinc sulfide fluorescent screen to detect impacts
- A dark chamber for observing tiny flashes of light
Alpha particles are helium nuclei. Each one contains:
- 2 protons
- 2 neutrons
They carry a positive electric charge and move at high speeds, though much slower than light.
When alpha particles hit the zinc sulfide screen, tiny flashes called scintillations appeared. Geiger and Marsden manually counted these flashes through a microscope. It was slow, repetitive work requiring dark-adapted eyes and patience.
A replica of an apparatus used by Geiger and Marsden to measure alpha particle scattering in a 1913 experiment. (The gold foil is at center)
The gold foil itself was astonishingly thin, only a few hundred atoms thick.
Gold was chosen partly because it is extremely malleable. It can be hammered into ultra-thin sheets without breaking.
What Scientists Expected To Happen
Under the plum pudding model, alpha particles should mostly travel straight through the foil.
Since the positive charge was assumed to be weakly distributed throughout the atom:
- particles might bend slightly
- large deflections should be extremely rare
- particles bouncing backward should be almost impossible
Imagine firing a cannonball through fog. You would not expect it to rebound toward you.
That was basically the expectation.
What Actually Happened
Most alpha particles did pass through the foil almost untouched.
That part matched expectations.
But some particles scattered at surprisingly large angles.
And roughly 1 in every several thousand alpha particles bounced backward at angles greater than 90 degrees.
Rutherford later described it famously:
“It was almost as incredible as if you fired a 15-inch shell at a piece of tissue paper and it came back and hit you.”
That single observation changed atomic theory.
Why Large Deflections Were So Important
The scattering pattern revealed something profound about atomic structure.
For a heavy alpha particle to reverse direction, it had to encounter:
- a very strong electric field
- concentrated in a very tiny region
- containing significant mass
A diffuse positive charge could never produce such sharp deflections.
Rutherford realized:
- nearly all positive charge must exist in a compact center
- most atomic volume must contain almost nothing
- electrons must occupy the surrounding region
This became the nuclear model of the atom.
The nucleus itself is tiny compared to the atom.
If an atom were the size of a large sports stadium, the nucleus would be closer to the size of a pea near the center.
The rest is mostly empty space occupied by electron probability distributions.
That last detail came later through quantum mechanics. Rutherford himself still imagined electrons orbiting more like miniature planets.
How Coulomb Forces Explained The Scattering
The scattering happened because both alpha particles and atomic nuclei carry positive charge.
Like charges repel.
The force involved is described by Coulomb’s law:
F = K × (q₁q₂ / d²)
This means the electric repulsion becomes dramatically stronger at very short distances.
Most alpha particles passed far enough from nuclei that they barely changed direction.
A few came extremely close to a nucleus.
Those experienced intense repulsion and scattered sharply.
The rare backward-scattered particles represented near head-on encounters with atomic nuclei.
This also helped scientists estimate nuclear size.
Later calculations showed nuclei are roughly:
- about 100,000 times smaller than atoms in diameter
- incredibly dense compared to ordinary matter
Why Gold Worked So Well
Gold foil was not random.
Gold atoms are heavy because their nuclei contain many protons. Larger positive charge creates stronger electric repulsion against alpha particles, making scattering easier to detect.
Gold also forms extremely thin continuous sheets without tearing.
If the foil were too thick:
- alpha particles would undergo many collisions
- results would become harder to interpret
The thin foil allowed scientists to study mostly single scattering events.
That detail mattered enormously for interpreting the data correctly.
The Experiment Did Not Discover Protons Or Neutrons
This is a common misconception.
The gold foil experiment revealed the existence of the nucleus, but not its full composition.
At the time:
- electrons were already known
- protons had not yet been fully identified as nuclear particles
- neutrons had not been discovered
James Chadwick later discovered the neutron in 1932.
Without neutrons, earlier nuclear mass calculations did not fully make sense because atomic masses were larger than proton counts alone could explain.
Why Rutherford’s Model Was Still Incomplete
Rutherford’s nuclear model solved one huge problem but created another.
Classical physics predicted orbiting electrons should continuously radiate energy.
If that were true:
- electrons would spiral inward
- atoms would collapse quickly
- stable matter could not exist
Clearly that does not happen.
Niels Bohr addressed this in 1913 by proposing quantized electron orbits. His model explained hydrogen’s spectral lines surprisingly well.
Later, quantum mechanics replaced fixed electron orbits with probability clouds and wavefunctions.
Modern atomic theory combines:
- Rutherford’s nucleus
- quantum mechanics
- electromagnetic interactions
- nuclear physics
So the gold foil experiment was not the final atomic model.
It was the turning point that made modern atomic physics possible.
The Historical Context Behind The Experiment
The experiment happened during a fascinating period in physics.
Scientists were rapidly discovering that atoms were not indivisible after all.
Within only a few decades:
- X-rays had been discovered
- radioactivity had been discovered
- electrons had been discovered
- atomic spectra were being studied
- relativity was emerging
- quantum theory was beginning
Physics was transforming from classical ideas into modern physics.
Rutherford himself had already done major work on radioactivity before the gold foil experiment.
He classified radioactive emissions into:
- alpha rays
- beta rays
- gamma rays
That earlier work made the scattering experiment possible because alpha particles became useful probes of atomic structure.
The Experiment Helped Create Nuclear Physics
Once scientists realized atoms contained dense nuclei, entirely new fields emerged.
The discovery eventually led to:
- nuclear fission
- nuclear fusion
- particle accelerators
- radioactive dating
- nuclear medicine
- atomic energy
- proton scattering experiments
Modern particle physics still uses scattering experiments today.
Instead of alpha particles and gold foil, scientists now use enormous accelerators like the Large Hadron Collider.
The logic is remarkably similar:
Fire particles at targets and study how they scatter to infer hidden structure.
In a way, Rutherford’s experiment established the blueprint for modern high-energy physics.
The Experiment Was Surprisingly Simple
One reason the gold foil experiment remains so admired is that the setup itself was conceptually simple.
No giant machines.
No advanced electronics.
No computers.
Just radioactive particles, thin metal foil, careful measurements, and deep reasoning.
The brilliance was not complexity. It was interpretation.
Rutherford recognized that a tiny number of strange results mattered more than the overwhelming majority of normal ones.
That takes scientific intuition.
Many major discoveries work like this. The unusual data point that initially looks wrong sometimes reveals the deeper truth.
Misconceptions About The Gold Foil Experiment
“Alpha particles hit electrons and bounced back”
Not really.
Electrons are far too light to reverse heavy alpha particles significantly. Large-angle scattering required interaction with a massive concentrated nucleus.
“Atoms are literally empty”
Atoms are mostly empty in terms of concentrated mass, but quantum mechanics complicates the picture.
Electron clouds still occupy space and determine chemistry, bonding, and material behavior.
“Rutherford discovered the complete atom”
He discovered the nucleus and proposed the nuclear model, but quantum mechanics and neutron discovery came later.
“Most particles bounced back”
Actually, backward scattering was extremely rare.
Most alpha particles passed straight through the foil.
That rarity itself was important evidence.
Why The Discovery Still Matters Today
The gold foil experiment fundamentally changed how humans understood matter.
Before it:
-
atoms were thought to be diffuse structures
After it:
- atoms had nuclei
- matter had internal structure
- empty space dominated atomic volume
That insight eventually connected to chemistry, electronics, nuclear engineering, astrophysics, and quantum physics.
Even modern solid materials are shaped by atomic structure discovered through these early experiments.
The behavior of semiconductors, metals, superconductors, batteries, and transistors ultimately depends on how electrons interact around atomic nuclei.
So this was not just a physics milestone.
It reshaped how humans understood matter itself.
